Coconut

Training Large Language Models to Reason in a Continuous Latent Space

Andrew Dinhobl

General Concept

- 2 modes: language model and latent mode
- use <bot> and <eot> tokens to demarcate thoughts

---

Equations

• \(x = (x_1, ..., x_T)\) some input sequence of tokens to time \(T\):

• \(e(\cdot)\) is token embedding function

• \(E_t = [e(x_1), e(x_2), ..., e(x_t)]\) sequence of token embeddings up to position \(t\)

• \(H_t = \text{Transformer}(E_t)\); \(H_t \in \mathbb{R}^{t \times d}\)

• \(h_t\) is last hidden state at position \(t\); \(h_t=H_t[t, :]\)

• Transformer model \(M(x_{t+1}\mid x_{\leq t}) = \text{softmax}(Wh_t)\)

• \(W\) is the parameter of the language model head

\(E_t=[e(x_1), e(x_2), ..., e(<bot>), h_i, h_{i+1}, ..., h_{j-1}, e(<eot>), ..., e(x_t)]\)

The authors start with an observation:
- “most word tokens are primarily for textual coherence and not essential for reasoning, while some critical tokens require complex planning and pose huge challenges to LLMs.”
- but that llms give the same computing budget to each token

So what’s the general concept:

• [walk through diagram]
  • In normal language modeling, you give a prompt, and then autoregressively generate next tokens, and feed them back as the input.

  • In CoT, you generate a lot of these tokens before generating a final answer

  • This allows the model to “reason” in text space

  • In this COCONUT paradigm, after a specific beginning-of-thought token, rather than decoding the transformer output embedding into a word token, it’s fed back to the LLM as the subsequent input embedding directly in the continuous space”

  • then there is some end-of-thought token and the model switches back into text outputs
• I have some equations for this we can walk through.
  • run the transformer blocks to get the hidden states for each token
  • normally in your transformer model M, you decode the embeddings to tokens with softmax
  • but in COCONUT, you just pass the output embeddings as the next input embeddings, bypassing tokenization and embedding

Interpretability

• Interpretability 🐘: Is this good?
  • Performance ↑, intepretability ↓
  • CoT / R1: “Wow! I can see what the model is thinking!”
  • Interpretability was already questionable

So this obviously has implications for interpretability.

They make a few arguments about this:
- The interpretability of reasoning traces was already suspect.
- Language is low bandwidth compared to models
- I think it’s unlikely that natural langauge will be the way models reason long term if we are optimizing for performance and cost.
- But also, I wouldn’t get scared based on just paper; but the GPT4 version will be

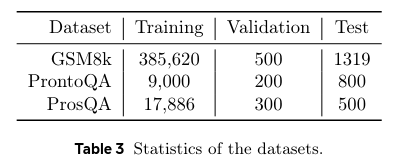

Datasets

• 3 datasets: augmented GSM8k + 2 constructed reasoning datasets

• Note that a step is a reasoning step composed of many tokens


---

• GSM8k is augmented with additonal synthetic data and NL instructions

---

Let’s talk about what datasets they use.
- They use a heavily augmented GSM8k
- Not sure how the second one was created
- Third one is based on a graph algorithm to create randomly connected graphs

• In each of these there is a question, an answer, and a set of reasoning steps, where the reasoning steps are multiple tokens. That’s important for later.

How do they train it?

• pre-trained GPT2 models
• “multi-stage training curriculum”

- \(n + 1\) forward passes on each stage
- no training loss for latent thoughts, so hard to parallelize training?
- decomposes training into easier objectives

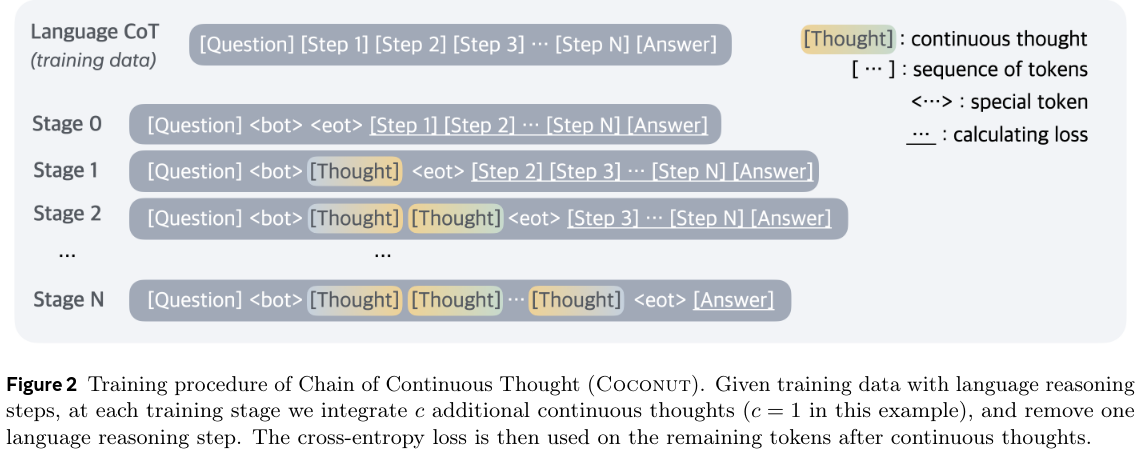

Steps

1. Data: (question, CoT for \(k\) steps, answer)

2. In initial stage, model trained on all steps of data, like normal

3. At \(k\)th stage, the first \(k\) steps are replaced with \(k \times c\) continuous thoughts
   • \(c\) is hyperparam controlling the continuous-steps-to-text-steps ratio

   • they insert the <bot> and <eot> tokens

4. reset the optimizer state between each training stage

5. Optimize negative log-likelihood loss; mask questions and latent thoughts

Inference

• essentially normal inference procedure, slight modified
• What triggers the <eot> token? Two options
  • train binary classifier on latent thoughts to let the model decide
  • “pad latent thoughts to constant length” (==constant number of thoughts?)
• The use the latter after saying they are comparable

• So how do they train this model?


• I found the training procedure is a bit confusing, but I’ll try my best.


• The break the model training down into stages, where at each stage, the replace one of the natural language thoughts with another continuous thought.

  • The say that this multi-stage training decomposes training into easier objectives


• They point out that they use n+1 forward passes on each stage and say this makes the training not very parallelizable

  • It seems like they generate 1 new thought on each forward pass? I didn’t dig into the code for this

  • Why not just do single forward pass to generate all thought tokens?

• They don’t calculate losses on the latent thoughts (how could you) or the questions

• They point out that this training objective does not train the model to compress the removed thought, just to facilitate reasoning in latent space

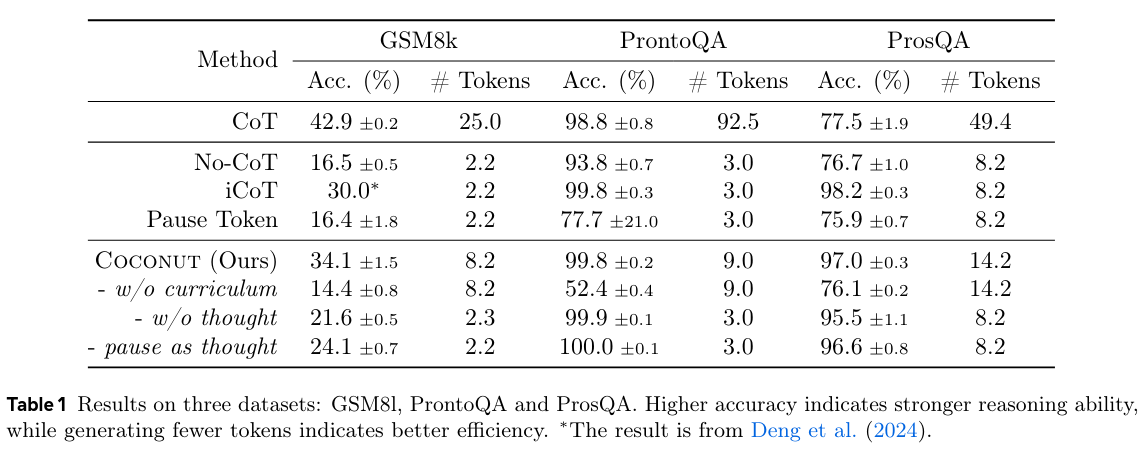

Results

Math Reasoning

• \(c = 2\)
• They train for stages 0, 1, 2, 3 and additional stage
  • additional stage uses \(3 \times c\) continuous thoughts, but removes rest of language steps
  • stage 0 for 6 epochs, 3 epochs for other stages

Logical Reasoning

• \(c = 1\)
• They train for stages 0 - 6, 5 epochs per

Both

• Train at final stage for 50 epochs, use validation loss to select

• iCoT?

  • somewhat similar, almost like ablating out the continuous thoughts by training gradually removing earlier reasoning tokens during training. Just predicting answer during inference

• What are pause tokens?

  • additional filler tokens, like <pause> or ..., that improve performance on some tasks

• don’t really speculate on GSM8k result

• on “highly branching” and random ProsQA, CoT doesn’t really improve over No-CoT -> latent reasoning good

---

• batch size 1

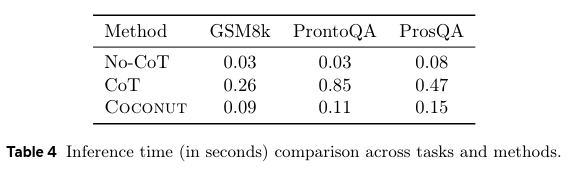

• they note that clock time \(\propto\) number of newly generated tokens

• used transformers for inference

• “leads to emergent advanced reasoning patterns”
  • model can encode multiple alternative next reasoning steps

  • leads to sort of BFS-style reasoning approach rather than the serial approach of CoT

• outperforms CoT in certain reasoning benchmarks that require substantial backtracking during planning
  • Question: which tasks does it do worse on, and why?
• uses substantially fewer tokens
• 3 datasets
  • GSM8k result is midling

  • ProntoQA result is just as good w/ 10% of the tokens

  • ProsQA result is better at 30% of the tokens
• why so many epochs? They are training a langauge model in a very different way
• inefficiency of thought tokens

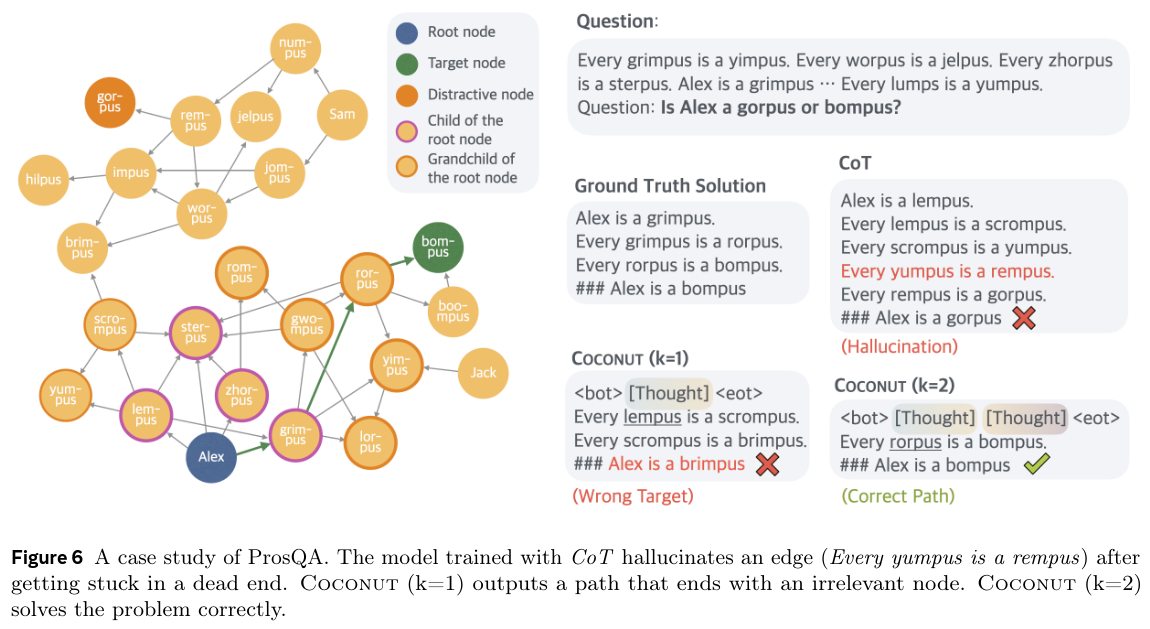

Understanding Distributed Reasoning

• “tree” vs “chain”

• they train probe to decode latent thought in \(c = 1\) setting

• \(3 * 3 = 9\) and \(3 * 60 = 180\) \(\rightarrow 55\%\) probability mass

---

- you’ll notice there are many dead ends

---

• Test time inference with `\(k \in {0,1,2,3,4,5,6}\) thoughts, output the rest in NL
• Labels and Paths depend on length of continuous and NL thoughts
• Training for this stage mixes data from other stages

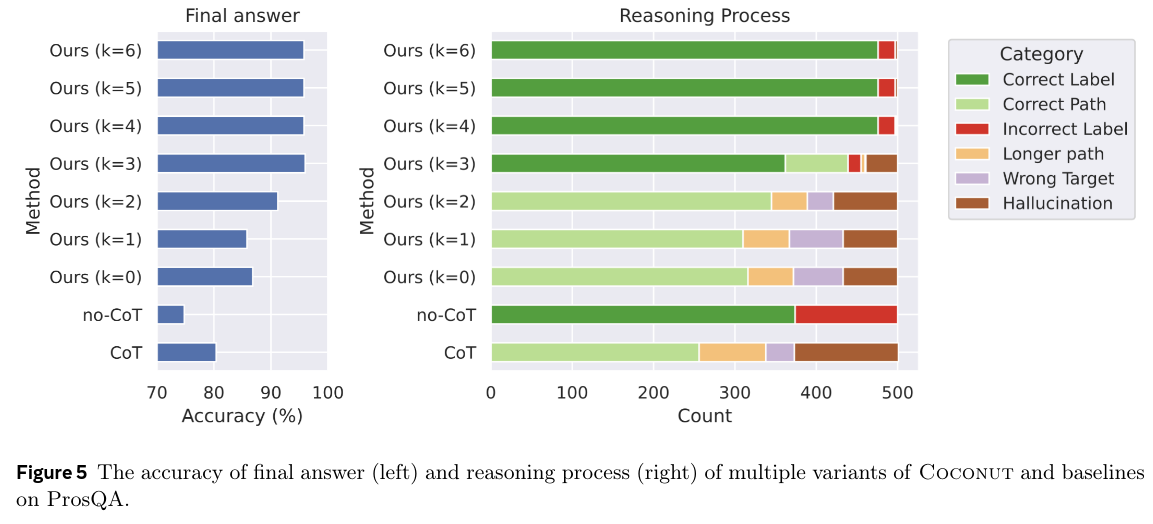

• “As more reasoning in continuous thoughts, Correct Path and Correct Label increase” \(\rightarrow\) better latent space reasoning
  • allows model to delay hard-decisions, “allow model to eliminate incorrect options”

---

• after k latent thoughts, they analyze next step probabilities for child or grandchild nodes
• probability is calculated as conditioned token probs for each node
• they interpret this as the model’s “implicit value function”

---

- x-axis is percentile of test cases
- “can encode several potential reasoning steps simultaneously and progressively eliminate incorrect paths”
- they refer to another paper laying the groundwork for distributional reasoning

• They actually do talk about neuro-imaging for reasoning tasks in the intro


• Reminds me of this recent meta paper

• they make a point in the graph that the Coconut(k=0) vs CoT is because Coco training with mixed stages makes the model less shortsighted and point to another paper to support it. Would like to see that elaborated more

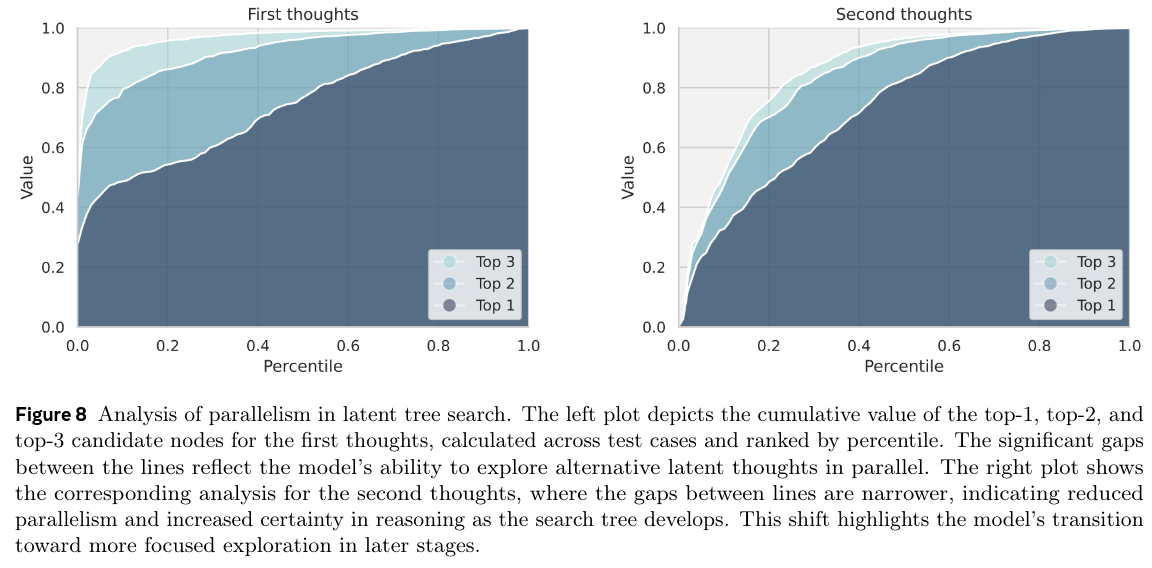

• for Figure 8, would have expected the valie of Top 1 to increase? Maybe because now we are two nodes in, it’s considering more


Thoughts

• Lots of room to improve training procedure. RL?

• Still requires natural language reasoning chains

• Thought granularity: training is based on NL steps

• how well does this training procedure generalize to new problem spaces?

• They claim to have demonstrated that the latent thoughts significantly enhance reasoning capabilities. I think it’s probably more accurate to say that they show a promising avenue
